MotoSim EG-VRC

Pregled

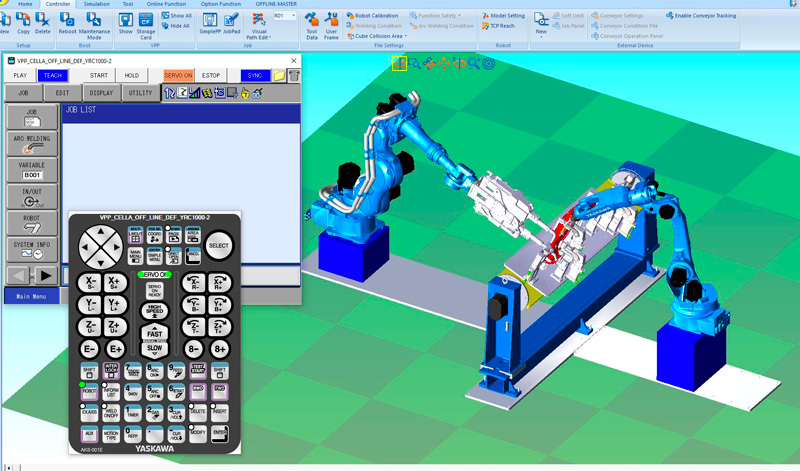

The powerful simulation software MotoSim EG-VRC enables offline programming of complex systems, minimizes setup-times and offers advanced control functions and simulation of the Yaskawa product family including robots, gantries, tracks and positioners.

MotoSim EG-VRC supports numerous process applications, such as arc werlding, spot welding, cutting, handling and painting.

Main features:

• Detection, reach analysis and cycle time calculation
• Visualition of real teach pendant from generation NX100 onwards
• Supports INFORM programming language
• Complete simulation of robot software in PC environment
• Creation of system configurations equivalent to real controller
• Transfer of offline programs to real controller without need for compilation
• Optimisation of existing robot programs without interrupting production
• Visualisation and calculation of real robot paths
• Various measurement and analytical tools
• Simple integration of user models into available Yaskawa model library
• Supports multi-robot and multi-controller simulations
• Control of robots and external axes including synchronous robot motion

Interested? Register in our Robotics Software Download Portal!

MotoSim Plug-in WinMOD MS200

The WinMOD MS200 plugin makes it possible to integrate virtual robots programmed with MotoSim EG-VRC into your existing WinMOD system. This allows the robots to be connected to various automation systems and tested in combination with real or virtual controllers. Depending on the application, the robot peripherals (e.g. grippers or tracks), the material flow and the component messages of the overall system can also be simulated and visualised as a 3D model. The functional behaviour of components and processes is realised through real-time simulations within the WinMOD environment or by linking selected subsystems with external simulations (e.g. with Process Simulate).
