MPK Series
MPK2F
High Speed Pick & Place Robot with 2 kg Payload
Pregled

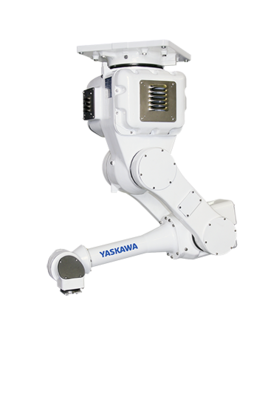

The MOTOMAN MPK2F is a 5-axis robot with a payload of 2 kg and a reach of 900 mm - a real high speed picker with a productivity in the region of up to 2 picks per second, for superior performance in food handling, pick&place and pick&pack applications in end-of-line packaging and consumer good logistics. With it's washdown paintwork, the MPK2F has been designed especially for use in food, medical and life sciences industries and environments with strict cleanliness environments.
Tehnične informacije
- Število osi
- 5
- Nosilnost
- 2 kg
- Max polmer dosega
- 900 mm
- Ponovljivost
- 0.5 mm
- Teža
- 72 kg
- Priključna moč
- 2 kVA
- Maximum Speed S Axis
- 320 °/s
- Maximum Speed L Axis
- 330 °/s
- Maximum Speed U Axis
- 330 °/s
- Maximum Speed B Axis
- 380 °/s
- Maximum Speed T Axis
- 2000 °/s
- Postavitev
- Ceiling, Wall, Floor
- Dodatne specifikacije
- x Ne
Namestitve
| Ime | |||
|
Flyer Robot MPK2F
Flyer, datasheet, brochure, robot, MPK2F Data sheet | angleščina |
Data sheet | angleščina | |
|
Flyer Robot MPK2F
Flyer, Datenblatt, Prospekt Roboter MPK2 Data sheet | nemščina |
Data sheet | nemščina | |
| MPK2_2D CAD/CAE | | CAD/CAE | ||
| MPK2_3D CAD/CAE | | CAD/CAE |
